Descritpion:
TheSony FCB-EX1010Pcolor block camera incorporates ¼ type ExView HAD™ CCD along with exceptional picture quality and high zoom capabilities (432x w/optical zoom). In addition, the new SOny FCB-EX1010P Camera is the first in this exceptional camera series to feature a 36x zoom lens with Wide-D, as well as horizontal resolution of 530 TV lines, improved motion detection, spherical privacy zone masking with mosaic effect, and enhanced multi lines (more than two) for title. The Sony FCB-EX1010P also features a slow AE Response Function that automatically slows the rate at which the exposure level changes. The rate can be set up to 32 times slower than when the Full Auto mode or Priority mode is selected.
Sony FCB-EX1010P HIGHLIGHTS:
* 1/4 type ExView HAD CCD
* Auto ICR (IR Cut filter Removal) Mode
* Slow AE Response
* E-flip
* Picture Freeze
* Mosaic Effect of Spherical Privacy Zone Masking
* Multi Lines for Title
* Spot AE
* Electronic shutter / slow shutter
* High-speed serial interface (max. 38.4 Kb/s) with TTL signal-level control (VISCA™ protocol)
* Key Switch connector (CN601)
* Internal / External sync (V-lock)
* 16-bytes of free memory for recording data (serial No., camera/system ID, etc.)
* Factory presets
* Register set command
* RoHS-compliant
The SONY FCB-EX1010P Camera SPECIFICATIONS:
* Image sensor: 1/4 type EXview HAD CCD (Progressive Scan)
* Number of total pixels: Approx. 380,000 pixels (NTSC), 440,000 (PAL)
* Lens: 36x optical zoom, F1.6 to F4.5 - f = 3.4mm to 122.4mm
* Digital zoom: 12x (432x with optical zoom)
* Horizontal Resolution: ON/OFF (530TV Line Resolution mode ON)
* Angle of view (H): 57.8° (wide end) to 1.7° (tele end)
* Min. working distance: 1.5 m at tele end
* Sync system: Internal / External (V-lock)
* Minimum illumination: 1.4 lx (typical) (F1.6, 50 IRE)
* S/N ratio: More than 50 dB
* Electronic shutter: 1/1 to 1/10,000 s, 22 steps
* White balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
* Gain: Auto / Manual (-3 to 28 dB, 2dB steps)
* AE control: Auto, Manual, Priority mode, Bright, EV compensation, Back-light compensation Slow AE
* Extend Dynamic Range (Wide-D): ON/OFF
* Day/Night: Auto/Manual
* EV compensation: -10.5 to 10.5 dB (1.5 dB steps)
* Back-light compensation: On/Off
* Privacy zone masking: On / Off (24 positions, 8position per screen), 14 colors + Mosaic
* Character Generator: Mode: ON/OFF (White Balance, Gain etc…), Title: 11 Lines (20 characters per line)
* Flicker Cancel: Auto
* Focusing system: Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF
* Picture effects: E-Flip, Nega Art, Black & White, Mirror Image
* Camera Operation Switch: Zoom tele, Zoom wide
* Video output: VBS: 1.0 Vp-p (sync negative), Y/C
* Camera control interface: VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 1 or 2 Stop bit selectable
* Storage temperature: -20 to 60 C (-4 to 140 °F)
* Operating temperature: 0 to 50 C (32 to 122 °F)
* Power consumption: 6 to 12 V DC /2.6 W (motors inactive), 4.9 W (motors active)
* Weight: 230 g
* Dimensions (w x h x d): 50.0 mm x 57.5 mm x 87.9 mm
Product Tags:
|
|

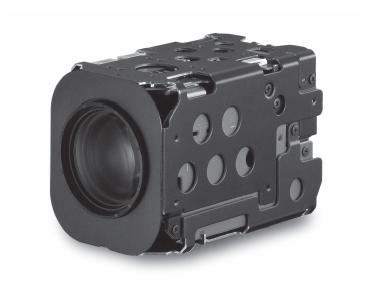

Sony FCB-EX1010P Color CCD Camera Images
|
